Go Direct® SpectroVis® Plus Spectrophotometer
The Go Direct SpectroVis Plus Spectrophotometer quickly measures a full wavelength spectrum. It connects via Bluetooth ® wireless technology or via USB to your device.
Technical Specifications

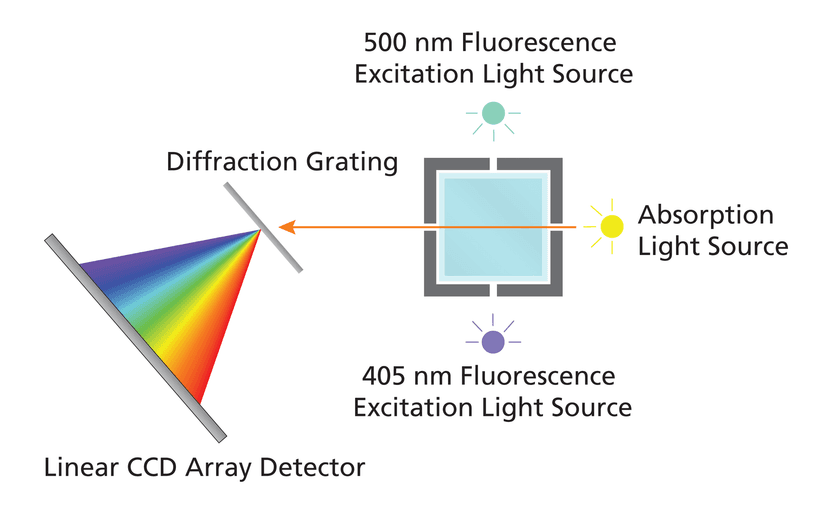

Range380 nm–950 nm Support for fluorescence: Two excitation sources centered at 405 nm and 500 nm Reported Wavelength
SourcesIncandescent white bulb, approximately 8000 hour lifetime, one-step calibration. LED-based, approximately 100,000 hour lifetime. No external power is required. Ty
Interval~1 nm between reported values (collects 570 values) Optical resolution (FWHM): 5.0 nm Wavelength accuracy: ± 4.0 nm Photometric accuracy: ± 0.10 A.U. Dimensions: 15 cm x 9 cm x 4 cm Light
ConnectivityBluetooth / USB
NCERT Coverage
CBSE Curriculum Alignment
1
experiments
1
classes
1
subjects
Physics
Experiments per class
Class 10
1
NCERT Practicals
Mapped Experiments
Class 10PhysicsDirect
SpectroVis Spectroscopy
The Human Eye and the Colourful World
View spectrum of white light — dispersion
